Windows Phone 7 - the Bing Maps Control
Written by Ian Elliot
Monday, 27 September 2010
Article Index
Windows Phone 7 - the Bing Maps Control
Customising code
Pushpins
Adding Silverlight graphics

The Windows Phone Bing Maps Silverlight control is almost, but not quite, identical to the desktop control. We take a look at using it and some of the ways that it differs.

Banner



Mapping is a common requirement for a mobile app and now it is easy to add mapping, even custom mapping, to a mobile application using the Bing Silverlight control.

It is important to realise that you have two distinct ways to use Bing Maps in your app. The original Javascript/Ajax control is supported and you can use this in a Web application or you can embed a browser control within your app and access it in the same way.

However the Silverlight control has a lot going for it and it is much easier to integrate it into the logic of your app rather than having to write Javascript to make it all work.

Getting started

To make use of the Siverlight Bing Maps control you have to download the lasted edition of the Windows Phone Tools. This is a good idea anyway as you can't submit apps to the app store using an older version.

To try it out start Visual Studio and create a new Windows Phone Silverlight application. To add the Bing Maps Control to your project simply use the Toolbox and drag-and-drop and resize the map using the designer.

Notice that the Windows Phone Map control and the desktop map control are different and they have a different namespace. The designer adds the line:

xmlns:my="clr-namespace:Microsoft.
                    Phone.Controls.Maps;
    assembly=Microsoft.Phone.Controls.Maps"

so you can refer to the control  with the prefix my.

The generated XAML map tag is something like:

<my:Map
Name="map1"
Height="500"
Width="450"/>

As soon as you add the map tag the designer displays a default map view. You can't interact or use the map facilities in the designer - it just acts as a placeholder.

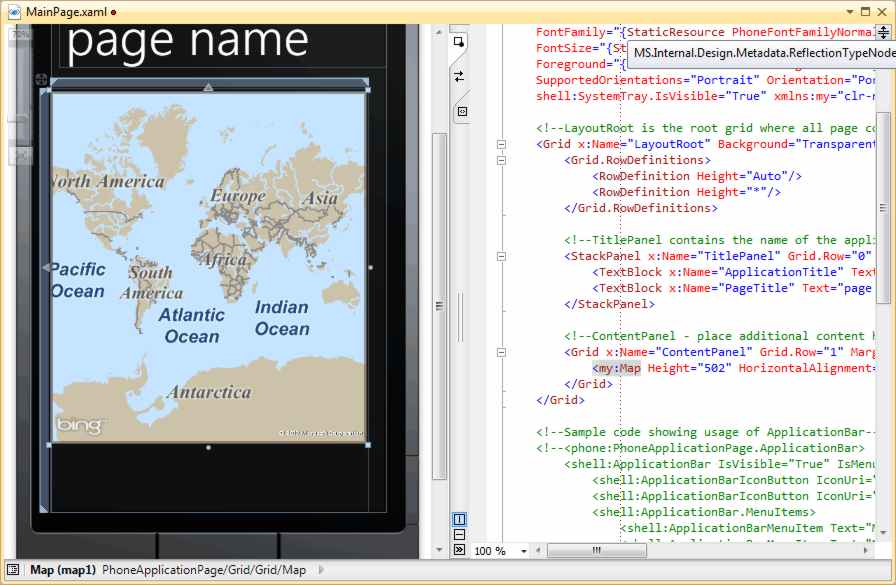

design

The map in the designer



If you now run the program you will discover that a map appears  but then a message to say that you have invalid credentials appears.

You have to sign up at https://www.bingmapsportal.com/ and obtain a valid key.Once you have a key you can apply it by assigning it to the CredentialsProvider property:

<my:Map
Name="map1"
Height="500"
Width="450"
CredentialsProvider="KEY"
/>

where, of course you replace KEY with your real Bing Maps key.



Banner



If you now run the application you will see the same map but now you should be able to interact with it using the zoom, pan and all of the other default tools.

Creating the map in code

You don't have to use XAML - ever.  XAML is just an object instantiation and property initialisation language. Anything you can do in XAML you can do in code and it's often a good idea to see how things are done without XAML.

If you start a new Silverlight application you can easily write code to add a default map to the page. Add a button using the designer and double click on it to transfer to the code editor. The following code is in C# but the same ideas apply in other languages.



First you need to add:

using Microsoft.Phone.Controls.Maps;

to the start of the code file.so that you can refer to map classes using short names. In the button's click handler you first create the map object:

private void button1_Click(
 object sender, RoutedEventArgs e)
{
 Map map = new Map();

Next you set the credentials:

 map.CredentialsProvider =
new ApplicationIdCredentialsProvider(
"KEY");

and as before you have to replace KEY with your Bing Maps key. Now we can add the map object to the Grid's Children collection so that it displays:

 LayoutRoot.Children.Add(map);
}

This is all that we need and if you run this program you will see the default map as before.
